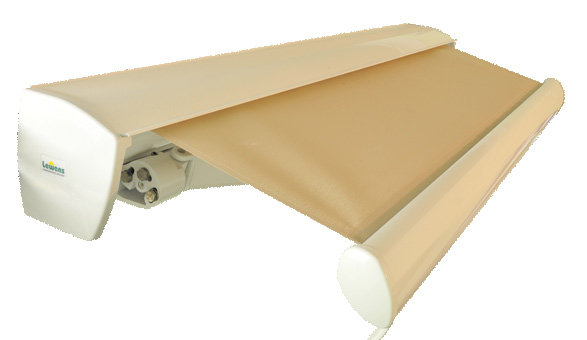

Family Design Semi-Cassette
The Family Design awning teams outstanding technical features and modern design with the appearance of a cassette awning.
Furnish and make outdoor spaces comfortable with the Family Design Semi-Cassette while retaining unmistakable style and unmatched quality. With a max of 11m wide and 4m extension, the Family Design-Semi Cassette is suitable for large areas.
Features
Fabric cover shell
The fabric cover shell offers a harmonious solution for concealing the fabric roller.
Front profile bracket
Joins the arms securely to the front profile. Notching permits adjustment of the angle.
Arm bracket
Reliable and secure, the arm bracket is made from high-strength aluminium alloy. Its round design matches the contour of the fabric cover shell. Upper arm fork is forged aluminium.
The casing of the Family Design Plus offers all-round protection for the fabric roller
Hinged arm joint
The plastic-coated double cables are designed for an extremely long service life:
- no soiling of the greased cables caused by exposure to the environment
- arm profile and cables of the same colour
The extremely high spring tension of the hinged arms ensures a superbly taut sit of the fabric. No resting of the awning cloth on the arm joints. Hinged arm joints feature a pin made of high-grade steel

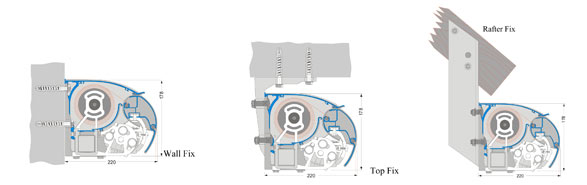

Installation Options
Technical Data
| DRIVE | Motorised or manual operation |
| SENSORS | All weather sensors - sun, rain, wind, temperature, timer |
| FRAME COLOURS | White or custom Dulux powder coat finish |
| AWNING FABRICS | Acrylic or polyester canvas or sunscreen mesh |
| WIDTH | 3m - 11m |
| Extension (arm lengths) | 2.0m / 2.5m / 3.0m / 3.5m / 4.0m |
| PROFILES | High Grade Extruded Aliminum |
| FIXINGS | Stainless steel nuts, bolts and pins |
| ARM | High tension triple spring arm system with PVC coated stainless steel cables |
Control Accessories
